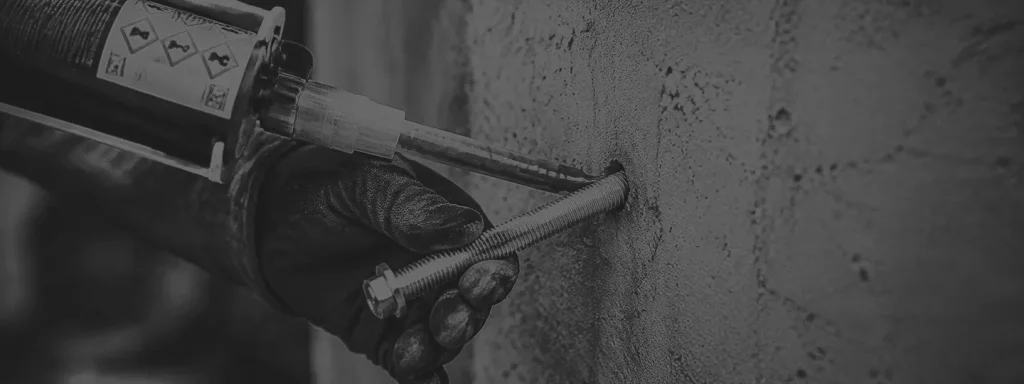

Specialist chemical anchor bolt installation by Mahtecsa Civil and Structural Engineering Company provides reliable, durable connections between bolts and concrete. Suitable for building, industrial, and structural strengthening projects, this method allows precise bolt installation even in cracked or high-strength concrete.
The combination of hands-on experience, engineering-driven management, and a commitment to quality enables Mahtaksa to deliver projects with precision, predictability, and consistent adherence to standards.
The cost of chemical bolt anchoring in concrete depends on the following factors:
| Factor | INTERPRETATION |
|---|---|
| Bolt diameter and length | Longer, thicker bolts require more adhesive and run time. |
| Chemical resin type | Epoxy, vinyl ester or polyester with different resistance and environmental conditions |
| Concrete conditions | Cracked, high-strength, or aged concrete requires special care and equipment. |
| Number of implants | The more bolts, the more materials and execution time will increase. |
| Access conditions and operating height | Installation location or height restrictions can increase implementation costs. |
| Need for specialized equipment | High-precision projects require advanced tools. |
| Skills and experience of the executive team | Standard and precise implementation has a direct impact on quality and cost. |
Specialist equipment and standard resin adhesives enable accurate bolt installation with minimal errors and a durable final connection.
Advanced machines and tools allow work in cracked and high-strength concrete, as well as complex site conditions.
All work is carried out by specialists familiar with the technical requirements of building and industrial projects.
Structural and concrete conditions are reviewed before the most suitable chemical anchoring method is recommended.
Submit your request, and the technical team at Fater Sazeh Iranian will conduct an initial review of your project and contact you as soon as possible to provide consultation and further details.
| Resin type | Salient features | Application of projects |
|---|---|---|
| Pure Epoxy | Highest load-bearing strength, excellent adhesion, suitable for blind holes | Columns, foundations, seismic zones |
| Vinylester | Faster setting, excellent resistance in corrosive environments | Industrial projects, corrosive environments, low temperatures |
| Polyester | Fast setting, medium strength, moisture sensitive | Light loads, temporary connections, facades and installations |
Key Points Before Installation:
The following table compares chemical anchoring with mechanical anchor installation.
| Property | Chemical bullet | Mechanical bolt |
|---|---|---|
| Connection mechanism | Based on adhesion and molecular bonding between resin, bolt and concrete | Based on physical expansion and friction with concrete hole |
| Suitable for cracked concrete | Yes, it is possible to plant even in cracked concrete with the right resin. | No, it is not suitable for cracked concrete. |
| Distances close to the free edge | Possibility of installation close to the edge of the concrete | Severe limitation on distance to edges |
| Local stresses in concrete | Does not create uniform pressure | Creating local stress and the possibility of concrete cracking |
| Bearing and connection | Stable and precise connection, high tensile and shear load capacity | Less stable connection, limited load-bearing capacity |
| Implementation conditions | Requires specialized equipment and high precision | Easier and faster, but limited in resistant and cracked concrete |
